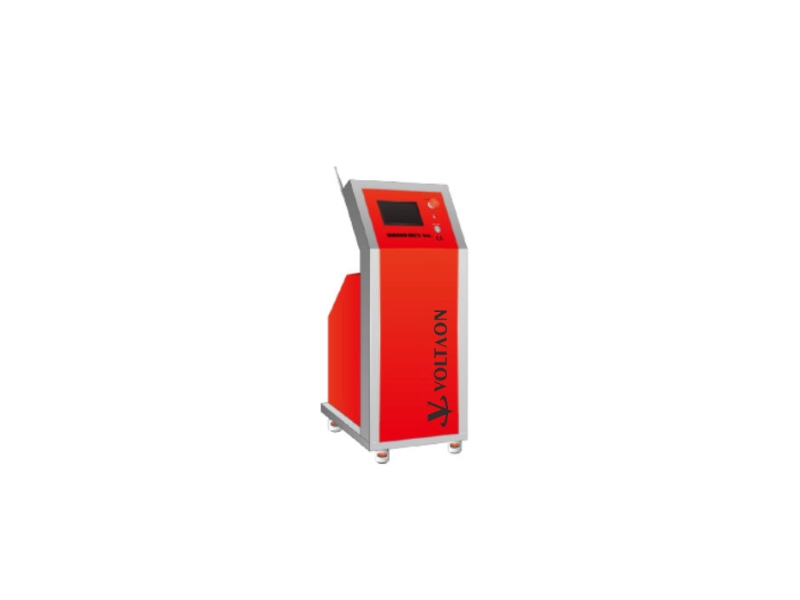

M-1007F
Features:
- Output: DC 1.2V to 125V, 0 to 100A
- Battery capacity: 1,000AH
- Transformer: 20KW
- Transformer: Suitable for nonsinusoidal current load with K-factor not to exceed 13
- Input Breaker: 45 to 50 A (400V)
- Input Electrical Energy: Max 19 KW
- Certification: CE / MET
- Dimensions (LxWxH): 610x500x1330mm
- Wheel height: 80mm
- Weight: 251 kg
Description
Specification
Description
- Patented regeneration technology applied (Patent: No. 10 -093150 093150093150 093150, capacitor regeneration device) (registered and applied for in the US, Europe, Japan, China)
- Effective removal of degraded secondary lead acid battery sulfate (SulphateSulphate Sulphate Sulphate)
- Support for both charging and discharging for the first time in the world
- Fast play time and efficient regeneration ability
- Supports 6 Program Modes, Easy Interface
- Compatible with 4,000AH battery (world’s largest)
- PC control & dedicated integrated program support
- Multi-language support / 8-inch LCD Interface
Specification
| Model | M-1007F |
| Power | AC 3PH, 200~440V, 50/60Hz |
| Output | 1.2 ~ 150V, 0A ~ 100A |
| Battery Volume | 1,000 AH |
| Transformer | 20 kW |
