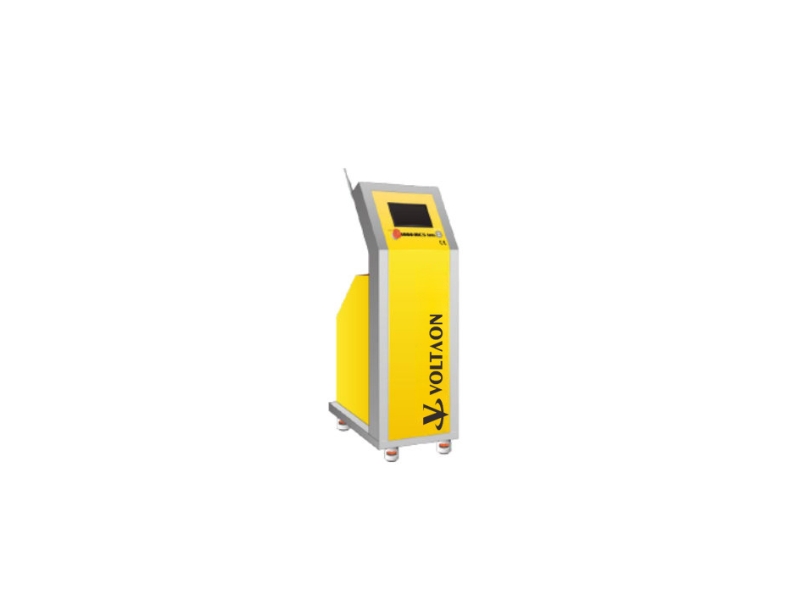

M-1001I
- Input Power: AC 1P2W + PE 220V, 50/60Hz, Max 35A
- Output: DC 1.2V ~ 100V, 0 ~ 30A
- Battery capacity: 300AH
- Transformer: 7.5KW
- Transformer: Suitable for nonsinusoidal current load with K-factor not to exceed 13
- Input Breaker: 35 to 40 A
- Input Electrical Energy: Max 5 KW
- Certification: CE / MET
- Dimensions (LxWxH): 610x400x1330mm
- Wheel height: 80mm
- Weight: 123.5 kg
Description
Specification
Description
- Patented regeneration technology applied (Patent: No. 10 -093150 093150093150 093150, capacitor regeneration device) (registered and applied for in the US, Europe, Japan, China)
- Effective removal of degraded secondary lead acid battery sulfate (SulphateSulphate Sulphate Sulphate)
- Support for both charging and discharging for the first time in the world
- Fast play time and efficient regeneration ability
- Supports 6 Program Modes, Easy Interface
- Compatible with 4,000AH battery (world’s largest)
- PC control & dedicated integrated program support
- Multi-language support / 8-inch LCD Interface
Specification
| Model | M-1001I |
| Power | AC 1PH, 110~220V, 50/60Hz |
| Output | 1.2 ~ 100V, 0A ~ 30A |
| Battery Volume | 300 AH |
| Transformer | 7.5 kW |
