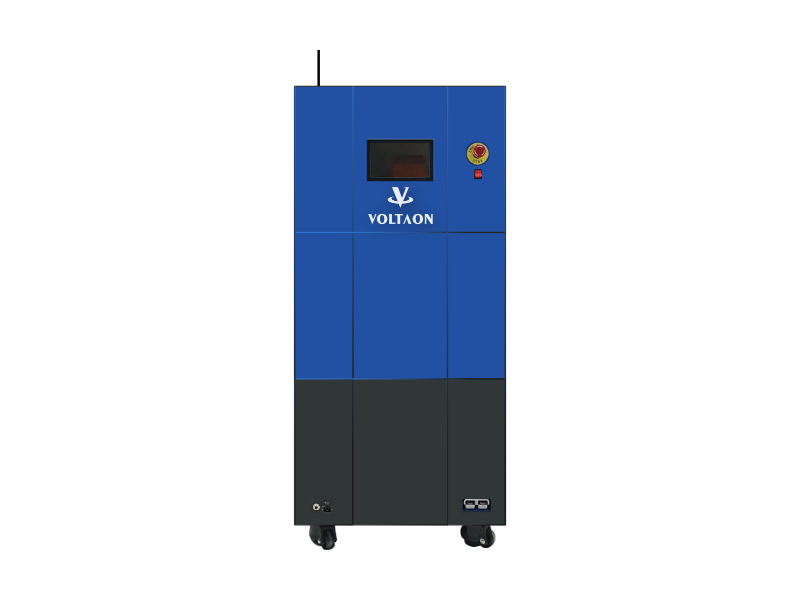

VTD-500S100
EV Battery Discharger
(Up to 500V EV battery pack)
The three main functions of VTD-500S100 are as follows.
- Electronic Load Bank function to verify battery capacity (SOC)
- Reverse potential discharge function for battery disposal: Discharge at DC 500.0V ~ 2.0V & 100A ~ 0,1A
- IT system record of all discharge data (can be stored in cloud system or own server)
Description
Specification
Description
Product Overview
VTD-500S100 is a multi-purpose battery discharger suitable for all uses of lithium-ion battery reuse, remanufacturing, and recycling. VTD-500S100 is capable of accurately discharging packs/modules/cells of large-capacity high-voltage batteries used in electric vehicles, batteries for stand-by, and batteries for energy storage devices (ESS).
The three main functions of VTD-500S100 are as follows.
- Electronic Load Bank function to verify battery capacity (SOC)
- Reverse potential discharge function for battery disposal: Discharge at DC 500.0V ~ 2.0V & 100A ~ 0,1A
- IT system record of all discharge data (can be stored in cloud system or own server)
Specification
| Input Power Specification | |
| Input Power | AC 200V 240V |
| Input Frequency | 50Hz/ 60HZ |
| Input Phase | Single-phase |
| Discharge Function | |
| Discharge voltage range | DC 500.0V ~ 2.0V |
| Discharge current range | 100.0A ~ 0.1A (Constant-Current) |
| Voltage/current accuracy | Current : ±1.0% (@500V) Voltage : ±5.0% (@100A) |
| Voltage/Current unit | Current : 0.1V Voltage : 0.1A |
| Discharge data save method | USB memory stick, PC control & Cloud system |
| User interface | |
| Display | 8-inch TFT touch LCD |
| Input interface | Touch screen |
| LCD Indicators | – Set voltage and current – Active voltage and current – Discharge graph |
| Alarm (Notice on display screen) | – Battery connection – Reverse battery electrode |
| External control port | – Bluetooth(wireless) – Cable RS-232 – PC program control |
| Accessory | |
| Output cable | 50mm2 x 3.5m, SB-175 |
| Operation Environment | |
| Operating temperature | 0°C 50°C (32°F 122°F) |
| Operation humidity | 5% 90% RH |
| Equipment instrument information | |
| Dimensions | 850 × 635 ×1771 mm |
| Weight | 240 Kg |
